4RCC-120M-00 | Fastron

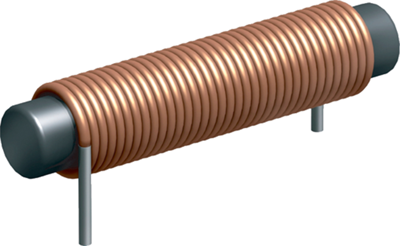

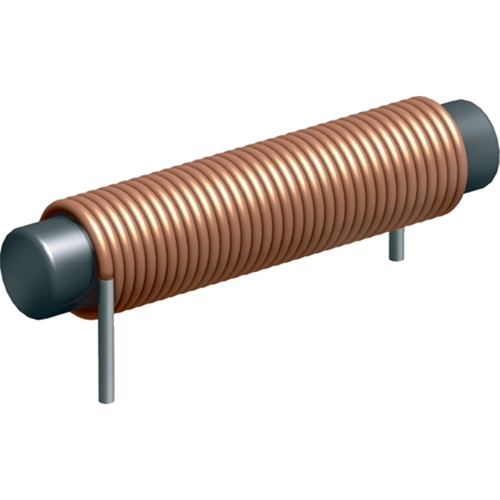

Suppressor choke, horizontal, 12 µH, 2 A, 4RCC-120M-00
Unit Price (€ / pc.)
1.6660 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
1.67 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6660 €
10 pcs.
1.4637 €
100 pcs.
1.2495 €
500 pcs.
1.0829 €
1000 pcs.
0.9877 €
*incl. VAT plus shipping costs
Subject to prior sale
Rod core chokes, type Fastron .RCC.
For applications in the automotive industry, interference suppression for electrical motors, with ferrite core
Type 4RCC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC resistance | 22 mΩ | |
| Tolerance | ±20 % | |
| DC current | 2 A | |
| Measuring frequency | 100 kHz | |
| Version | suppressor choke | |
| Design | horizontal | |

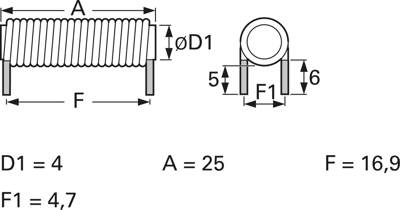

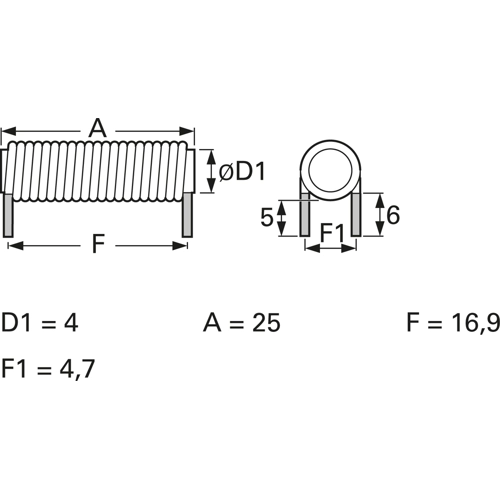

| Length | 25 mm | |
| Inductance | 12 µH | |
| Saturation current | 5 A |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 1 piece |
| Country of origin | HU |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
