242418FPS-330M-01 | Fastron

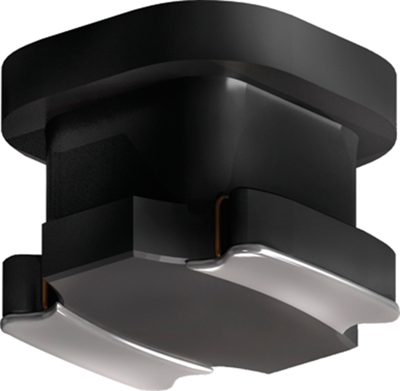

Power choke, SMD 2424, 33 µH, 1.5 A, 242418FPS-330M-01
Unit Price (€ / pc.)
0.3689 € *
Available in 4 Days: 748 pcs. - if ordered today
Total Price:
0.37 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3689 €
10 pcs.
0.3451 €
100 pcs.
0.3213 €
500 pcs.
0.3094 €
1000 pcs.
0.2916 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD Shielded inductor, 242418FPS-330M-01, Fastron
This Inudctor provides good solderability with lead free tinned Terminals and is RoHS compliant. Suitable for circuits where high current saturation is critical. When small size matters, only 1.5 mm and higher profile for DC/DC converters e.g in portable devices or backlight for tablet displays.
Features
- High flux density ferrite core
- Magnetically shielded with a ferrite-epoxy resin

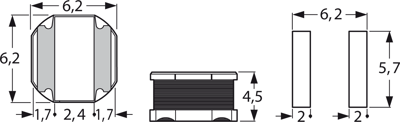

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 6.2 mm | |
| DC resistance | 204 mΩ | |
| Tolerance | ±20 % | |
| DC current | 1.5 A | |
| Measuring frequency | 100 kHz | |
| Version | power choke | |
| Design | SMD 2424 | |
| Height | 4.5 mm | |
| Length | 6.2 mm | |
| Inductance | 33 µH | |
| Saturation current | 1.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 1 piece |
| Country of origin | MY |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
