242418FPS-221M-01 | Fastron
Power choke, SMD 2424, 220 µH, 500 mA, 242418FPS-221M-01
Unit Price (€ / pc.)
0.3570 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
0.36 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3570 €
10 pcs.
0.3332 €
100 pcs.
0.3094 €
500 pcs.
0.2975 €
1000 pcs.
0.2832 €
*incl. VAT plus shipping costs
Subject to prior sale
Power inductor, 242418FPS-221M-01, FASTRON
The 242418FPS-221M-01 is a chip inductor which is used for transmit and receive radio frequency (RF) signals with other electronic devices.
Features
- Magnetically shielded
- RoHS Compliant
Applications
- High current saturation
- DC-DC converter inductor applications
- Portable devices
- Backlight for tablet displays

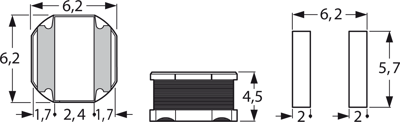

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 6.2 mm | |
| DC resistance | 1.104 Ω | |
| Tolerance | ±20 % | |
| DC current | 500 mA | |
| Measuring frequency | 100 kHz | |
| Version | power choke | |
| Design | SMD 2424 | |
| Height | 4.5 mm | |
| Length | 6.2 mm | |
| Inductance | 220 µH | |
| Saturation current | 550 mA |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 1 piece |
| Country of origin | MY |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
