1206AS-R22J-08 | Fastron
RF choke, SMD 1206, 220 nH, 670 mA, 1206AS-R22J-08
Unit Price (€ / pc.)
0.3213 € *
Standard delivery time from the manufacturer is: 18 Weeks
RF inductor, 1206AS-R22J-08, FASTRON

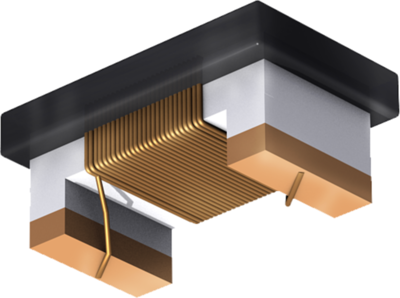

The 1206AS-R22J-08 is a chip inductor with wire wound-open that is a passive electronic component which is capable of storing electrical energy in the form of magnetic energy.
Applications
- LC resonant circuits
- Mobile telecommunication
- Automotive subsystems
- Wireless communication
Technical specifications
| Quality Q | Q 75 | |
| Height | 1.5 mm | |
| Inductance | 220 nH | |
| Width | 2.5 mm | |
| DC resistance | 0.5 Ω | |
| DC current | 670 mA | |
| Version | RF choke | |
| Design | SMD 1206 | |
| Length | 4 mm | |
| Measuring frequency | 300 MHz | |
| Tolerance | ±5 % |
Download
Logistics
| Original Packaging | Bulk with 1 piece |
| Country of origin | MY |
| Customs tariff number | 85045000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
