1206AS-4R7K-08 | Fastron
RF choke, SMD 1206, 4700 nH, 120 mA, 1206AS-4R7K-08
Unit Price (€ / pc.)
0.2511 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
0.25 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2511 €
10 pcs.
0.2332 €
100 pcs.
0.2190 €
500 pcs.
0.2071 €
1000 pcs.
0.1975 €
*incl. VAT plus shipping costs
Subject to prior sale

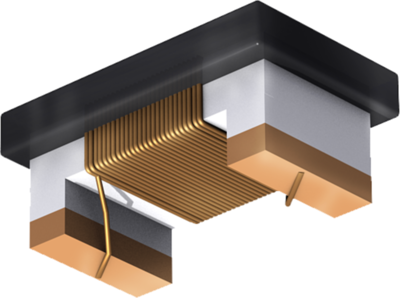

RF inductor, 1206AS-4R7K-08, FASTRON
The 1206AS-4R7K-08 is a chip inductor with wire wound-open that is a passive electronic component which is capable of storing electrical energy in the form of magnetic energy.
Applications
- LC resonant circuits
- Mobile telecommunication
- Automotive subsystems
- Wireless communication

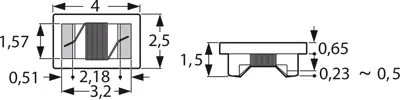

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 4700 nH | |
| Length | 4 mm | |
| Design | SMD 1206 | |
| DC resistance | 7.2 Ω | |
| Tolerance | ±10 % | |
| DC current | 120 mA | |
| Width | 2.5 mm | |
| Measuring frequency | 50 MHz | |
| Quality Q | Q 20 | |
| Height | 1.5 mm | |
| Version | RF choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Original Packaging | Bulk with 1,000 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
