11PHC-473K-50 | Fastron
Suppressor choke, radial, 47 mH, 70 mA, 11PHC-473K-50
Unit Price (€ / pc.)
1.0353 € *
Available in 4 Days: 250 pcs. - if ordered today

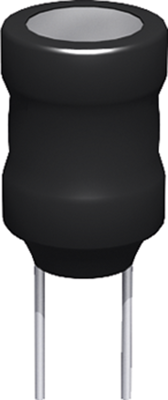

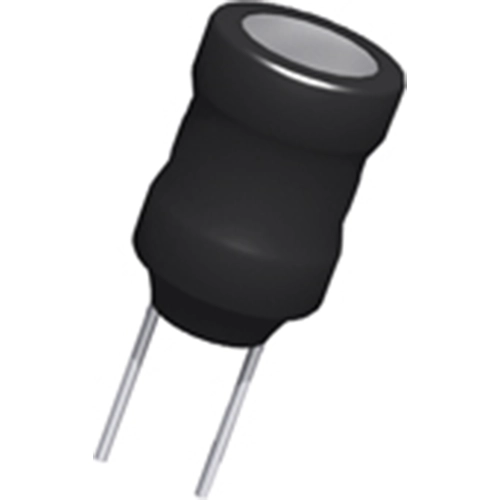

Suppressor inductor, 11PHC-473K-50, FASTRON
The 11PHC-473K-50 is an inductor that is a passive electronic component which is capable of storing electrical energy in the form of magnetic energy.
Features
- High Q
- High current
- High voltage
Applications
- DC-DC converter
- Digital amplifier LPF
- Signal filtering
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 70 mA | |
| DC resistance | 97 Ω | |
| Saturation current | 90 mA | |
| Measuring frequency | 20 kHz | |
| Tolerance | ±10 % | |

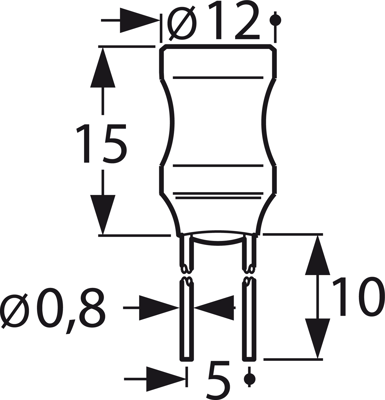

| Height | 15 mm | |
| Inductance | 47 mH | |
| Design | radial | |
| Version | suppressor choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Original Packaging | Carton with 1 piece |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
