11P-103K-50 | Fastron

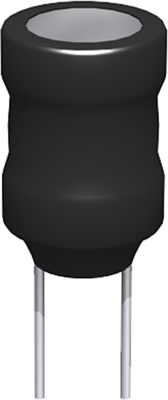

Suppressor choke, radial, 10 mH, 110 mA, 11P-103K-50
Unit Price (€ / pc.)
0.7259 € *
Available in 4 Days: 50 pcs. - if ordered today
Total Price:
0.73 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7259 €
10 pcs.
0.6783 €
100 pcs.
0.6426 €
500 pcs.
0.6069 €
1000 pcs.
0.5712 €
*incl. VAT plus shipping costs
Subject to prior sale
Suppressor inductor, 11P-103K-50, FASTRON
The 11P-103K-50 is a plugable inductor which is used for transmit and receive radio frequency (RF) signals with other electronic devices.
Features
- High rated current
- High Q
Applications
- DC/DC converters
- Digital amplifier LPF
- Signal filtering
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 10 mH | |
| Design | radial | |
| DC resistance | 23 Ω | |
| Tolerance | ±10 % | |
| DC current | 110 mA | |

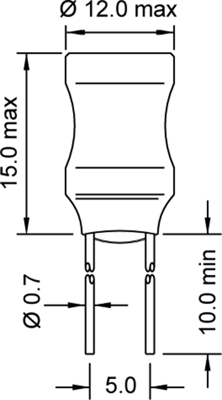

| Width | 12 mm | |
| Height | 15 mm | |
| Version | suppressor choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Original Packaging | Reel with 250 pieces |
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
