09P-821K-51 | Fastron

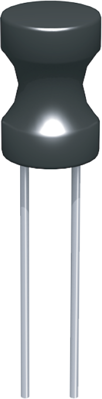

Suppressor choke, radial, 820 µH, 250 mA, 09P-821K-51
Unit Price (€ / pc.)
0.357 € *
Standard delivery time from the manufacturer is: On Request
Pluggable inductor, 09P-821K-51, Fastron
Features
- Suitable for high temperature
- Mechanical shock and vibration proof
- Designed for high Q-value
- Exceptionally high Q-value
- Optimized for high current
- Optimized for high voltage
Applications
- DC-DC converters
- Digital amplifier LPF
- Signal filtering applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | suppressor choke | |
| Height | 12.5 mm | |
| DC resistance | 2.2 Ω | |
| Inductance | 820 µH | |
| DC current | 250 mA | |
| Measuring frequency | 0.02 MHz | |
| Tolerance | ±10 % | |
| Design | radial | |
| Quality Q | Q 70 |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 500 pieces |
| Country of origin | MY |
| MSL | MSL 1 |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
