0805AS-010J-01 | Fastron
RF choke, SMD 0805, 0.01 µH, 0805AS-010J-01
Unit Price (€ / pc.)
0.2083 € *
Available in 4 Days: 198 pcs. - if ordered today

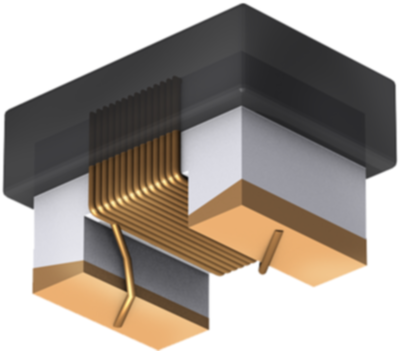

RF inductor, 0805AS-010J-01, FASTRON
The 0805AS-010J-01 is a chip inductor which is used for transmit and receive radio frequency (RF) signals with other electronic devices.
Applications
- Oscillator and signal generators
- Mobile telecommunication
- Automotive Subsystems
- Wireless communication

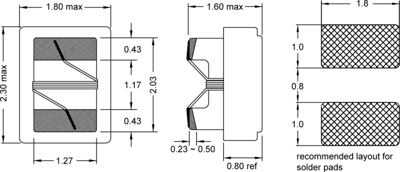

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 2.3 mm | |
| Height | 1.6 mm | |
| Saturation current | 600 mA | |
| Inductance | 0.01 µH | |
| Quality Q | Q 43 | |
| Measuring frequency | 250 MHz | |
| Width | 1.8 mm | |
| Design | SMD 0805 | |
| DC resistance | 0.13 Ω | |
| Version | RF choke | |
| Tolerance | ±5 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Original Packaging | Reel with 2,500 pieces |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
