0402F-R27K-08 | Fastron

RF choke, SMD 0402, 270 nH, 380 mA, 0402F-R27K-08

Order No.: 76D2669
EAN: 4099889042887
MPN:
0402F-R27K-08
Series: 0402F

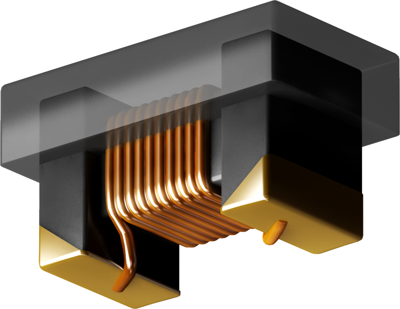

0402F-R27K-08 Fastron Fixed Inductors Image 1
0402F-R27K-08 Fastron Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
0.4760 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
0.48 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4760 €
10 pcs.
0.4165 €
100 pcs.
0.3570 €
500 pcs.
0.3094 €
1000 pcs.
0.2856 €
*incl. VAT plus shipping costs
Subject to prior sale

SMD inductor, 0402F-R27K-08, FASTRON

The 0402F-R27K-08 is a chip inductor which is used for transmit and receive radio frequency (RF) signals with other electronic devices.

Applications

  • Oscillator and signal generators
  • Mobile telecommunication
  • Automotive Subsystems
  • Wireless communication
Technical specifications
Filter Property Value
Measuring frequency 7.9 MHz
Design SMD 0402
DC current 380 mA
Inductance 270 nH
Version RF choke

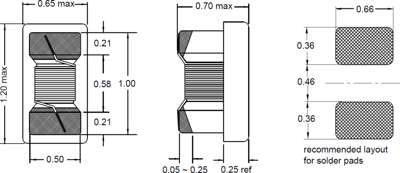

Length 1.2 mm
Tolerance ±10 %
Height 0.7 mm
DC resistance 550 mΩ
Width 0.65 mm
Logistics
Property Value
Customs tariff number 85045000
Country of origin MY
Original Packaging Reel with 1,000 pieces
MSL MSL 1
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
