0402F-022K-08 | Fastron
RF choke, SMD 0402, 22 nH, 1.6 A, 0402F-022K-08
Unit Price (€ / pc.)
0.4403 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
0.44 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4403 €
10 pcs.
0.3808 €
100 pcs.
0.3332 €
500 pcs.
0.2856 €
1000 pcs.
0.2618 €
*incl. VAT plus shipping costs
Subject to prior sale

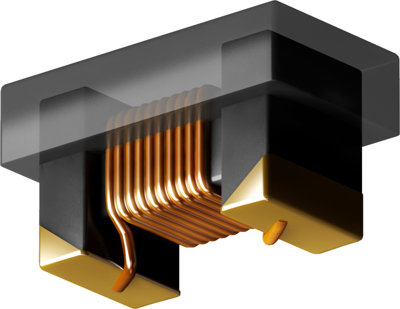

SMD inductor, 0402F-022K-08, FASTRON
The 0402F-022K-08 is a chip inductor which is used for transmit and receive radio frequency (RF) signals with other electronic devices.
Applications
- Oscillator and signal generators
- Mobile telecommunication
- Automotive Subsystems
- Wireless communication

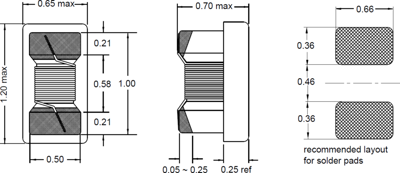

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 1.2 mm | |
| DC current | 1.6 A | |
| Height | 0.7 mm | |
| Inductance | 22 nH | |
| Measuring frequency | 7.9 MHz | |
| Width | 0.65 mm | |
| Design | SMD 0402 | |
| DC resistance | 60 mΩ | |
| Version | RF choke | |
| Tolerance | ±10 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
| Original Packaging | Reel with 1,000 pieces |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
