SMB/002-999X-01 | Fastron

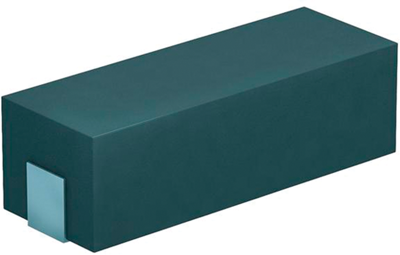

Ferrite Bead, SMD, 5 A, 15 mΩ, 100 Ω, SMB/002-999X-01
Unit Price (€ / pc.)
0.4403 € *
Available: 15 pcs.
Available in 4 Days: 545 pcs. - if ordered today
Total Price:
4.40 € *
Price list
Quantity
Price per unit*
10 pcs.
0.4403 €
50 pcs.
0.3213 €
250 pcs.
0.2535 €
1000 pcs.
0.2225 €
2000 pcs.
0.1975 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD wide band chokes, ferrite EMI filters, type Fastron SMB/002.
Impedance 100/300 MHz: 100/112 ohm. DC resistance: max. 0.015 ohm. Rated current: 5.0 ADC.
Type: SMB/002–999X–01, SMD ferrite EMI filter
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 5 A | |

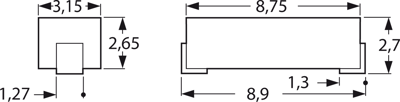

| Width | 3.15 mm | |
| Impedance | 100 Ω | |
| Length | 8.75 mm | |
| Design | SMD | |
| DC resistance | 15 mΩ | |
| Height | 2.65 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Customs tariff number | 85045000 |
| Original Packaging | Reel with 500 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
