2460AA00 | fastpoint
Spacer bolt, without thread/locking, Ø 2.9 mm/Ø 4 mm, 6.5 mm, PA, 2460AA00
 Order No.: 17H9900
  EAN: 4099889464603
  MPN:
  2460AA00
 Unit Price (€ / pc.)
   0.2796 €  *
   Available: 590 pcs.
 Total Price:
  0.28 € *
  Price list
 Quantity
 Price per unit*
 1 pcs.
 0.2796 €
 10 pcs.
 0.2440 €
 100 pcs.
 0.2094 €
 1000 pcs.
 0.1749 €
 5000 pcs.
 0.1392 €
  *incl. VAT plus shipping costs
  Subject to prior sale

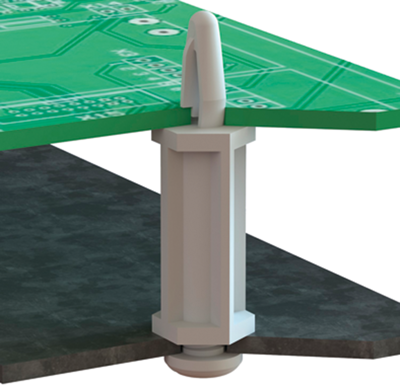

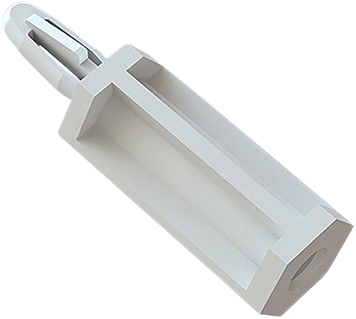

 PCB spacer, 2460AA00, fastpoint
Snap-in mount on PCBs, with hole for self-tapping screws.; Screw hole: Ø 2.9 mm. PCB thickness: 1.0 to 2.0 mm. PCB perforation: 4.0 mm. Material: PA 6.6. Color: plain. Inflammability: UL94 V-2.
Type: 2460AA00, L 6.5 mm.

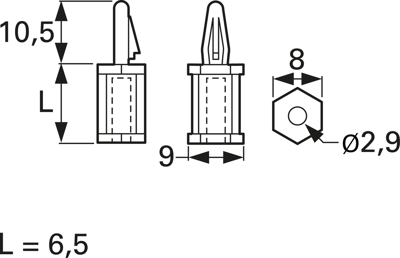

 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| spanner size | 8 mm | |
| External thread length | 10.5 mm | |
| Length | 6.5 mm | |
| Colour | natural | |
| Material | PA | |
| Thread size | Ø 2.9 mm/Ø 4 mm | |
| Inner diameter | 2.9 mm | |
| Product type | spacer bolt | |
| Version | without thread/locking | |
| Bolt length | 6.5 mm |
 Download
  Logistics

 | Property | Value |
|---|---|
| Customs tariff number | 39269097 |
 Compliance

 | Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
