10118BB0130.0 | fastpoint
Round spacer sleeve, without thread, M6, 30 mm, PA, 10118BB0130.0
Order No.: 18H5065
EAN: 4099889494846
MPN:
10118BB0130.0
Distanzhülse M6,AD10,0, L30,0
Unit Price (€ / pc.)
0.3213 € *
Available: 195 pcs.
Total Price:
0.32 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3213 €
10 pcs.
0.2975 €
100 pcs.
0.2654 €
500 pcs.
0.2071 €
1000 pcs.
0.1654 €
*incl. VAT plus shipping costs
Subject to prior sale
Spacer rolls, polyamide, type Fastpoint 10.

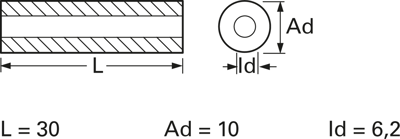

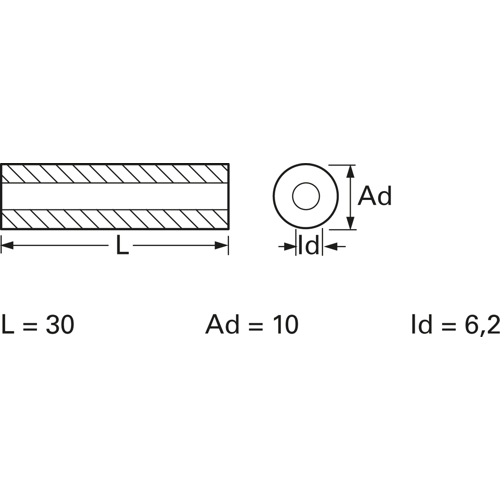

Material: PA 6 25 % GV. Thermal resistance: –35 to +110 °C. Inflammability: UL 94 HB. Color: black type. Table index, type, for screw, length (L), outer diameter (OD), inner diameter (Id).
Type: 10118BB0130.0, M 6, L 30, OD 10, Id 6.2 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Bolt length | 30 mm | |
| Colour | black | |
| Thread size | M6 | |
| Outer diameter | 10 mm | |
| Length | 30 mm | |
| Design | round | |
| Material | PA | |
| Version | without thread | |
| Product type | spacer sleeve | |
| Inner diameter | 6.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
