18684PS117035 | fastpoint

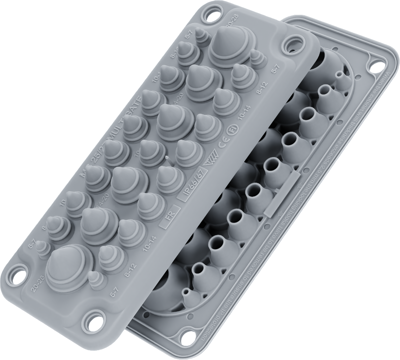

Cable feed through plate, cable Ø 5 to 26 mm, TPE, gray, 18684PS117035
Order No.: 13H767
EAN: 4099891994129
MPN:
18684PS117035
Unit Price (€ / pc.)
12.8282 € *
Standard delivery time from the manufacturer is: 5 Weeks
Cable gland plate, 18684PS117035, fastpoint
It is a new type of cable gland plate reinforced with metal and made of various types of polymers. It meets the respective IP protection classes, as it does not require separate seals or cable glands, which makes it very easy to use, offering countless advantages in a single mounting unit. It is suitable for both outdoor and indoor use and offers absolute protection against dust and strong water jets from all directions and against the effects of immersion between 15 cm and 1.0 m. This cable gland can be used in place of the MC 25 Multigate. The configuration has the same openings as the MC 25 and 2 more.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Mounting hole size | 9.5 mm | |
| Material | TPE | |
| max. operating temperature | 100 °C | |
| Version | IP67 | |
| Product type | cable feed through plate | |
| min. cable diameter | 5 mm | |
| min. operating temperature | -40 °C | |
| Colour | gray | |
| Wall thickness | 23 mm | |
| max. Cable diameter | 26 mm | |
| Length | 222 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FI |
| Original Packaging | Bulk with 60 pieces |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
