18684PS019005 | fastpoint

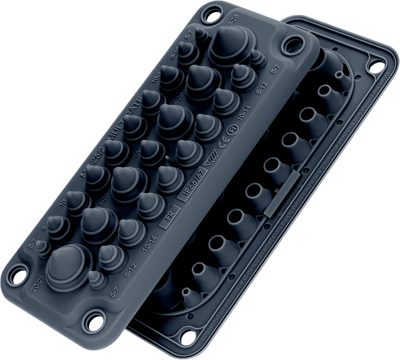

Cable feed through plate, cable Ø 5 to 26 mm, TPE, black, 18684PS019005
Order No.: 13H768
EAN: 4099891994136
MPN:
18684PS019005
Unit Price (€ / pc.)
12.8282 € *
Standard delivery time from the manufacturer is: 5 Weeks
Cable gland plate, 18684PS019005, fastpoint
It is a new type of cable gland plate reinforced with metal and made of various types of polymers. It meets the respective IP protection classes, as it does not require separate seals or cable glands, which makes it very easy to use, offering countless advantages in a single mounting unit. It is suitable for both outdoor and indoor use and offers absolute protection against dust and strong water jets from all directions and against the effects of immersion between 15 cm and 1.0 m. This cable gland can be used in place of the MC 25 Multigate. The configuration has the same openings as the MC 25 and 2 more.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 100 °C | |
| Length | 222 mm | |
| min. operating temperature | -40 °C | |
| Colour | black | |
| min. cable diameter | 5 mm | |
| Material | TPE | |
| Mounting hole size | 9.5 mm | |
| Wall thickness | 23 mm | |
| max. Cable diameter | 26 mm | |
| Product type | cable feed through plate | |
| Version | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Original Packaging | Bulk with 60 pieces |
| Country of origin | FI |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
