12621PS01 | fastpoint
U cable gland, cable Ø 14 mm, TPE, black, 12621PS01
Order No.: 13H1489
EAN: 4099891989347
MPN:
12621PS01
Unit Price (€ / pc.)
0.7973 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
0.80 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7973 €
10 pcs.
0.7259 €
50 pcs.
0.6902 €
100 pcs.
0.6426 €
500 pcs.
0.5950 €
*incl. VAT plus shipping costs
Subject to prior sale

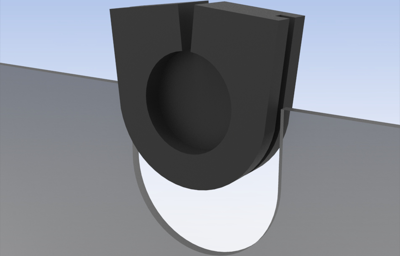

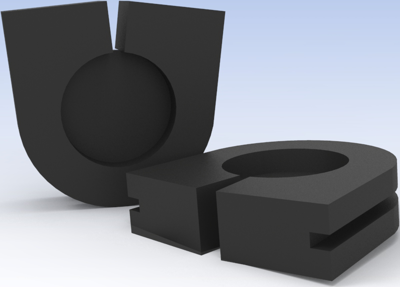

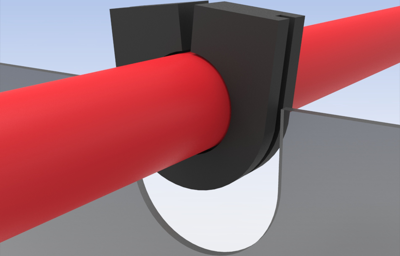

Border grommet, 12621PS01, fastpoint
This grommet has good tightness at low and high temperatures and good resistance to water, dilute acid, alkaline solution, salt, ozone, and UV rays; it has fair resistance to ketone, mineral oil, gasoline, ester, and excellent resistance to aging. It has great softness and excellent dielectric properties. It is suitable for a U-shaped hole starting from the edge of the sheet metal.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | with pre-punched membrane | |
| max. Cable diameter | 14 mm | |
| min. operating temperature | -28 °C | |
| max. operating temperature | 90 °C | |
| Wall thickness | 1.5 mm | |
| Length | 25 mm | |
| Colour | black | |
| Material | TPE | |
| Product type | cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | FI |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
