1257CA01M | fastpoint

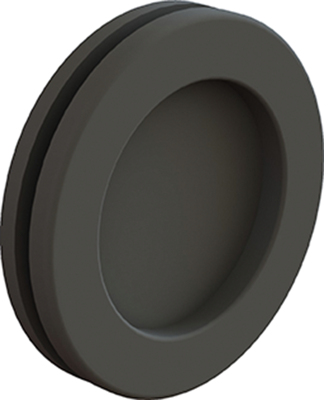

Cable gland, cable Ø 21 mm, PVC, black, 1257CA01M
Order No.: 12H3879
EAN: 4099891196028
MPN:
1257CA01M
Unit Price (€ / pc.)
0.7378 € *
Available: 212 pcs.
Total Price:
0.74 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7378 €
10 pcs.
0.6426 €
100 pcs.
0.5950 €
500 pcs.
0.5117 €
1000 pcs.
0.4641 €
*incl. VAT plus shipping costs
Subject to prior sale
Membrane cable bushings/dummy plugs, type Fastpoint 4../0../1.
Flush diaphragm on one side, for closing cable exits or cable feed-through; Material: PVC. Color: black. Operating temperatures: –25 to +60 °C.

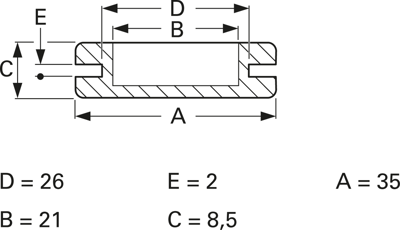

Technical attributes (type, dimensions): 1257 CA01 M, D 26, E 2.0, A 35, B 21, C 8.5 mm
Technical specifications
| max. operating temperature | 60 °C | |
| Wall thickness | 2 mm | |
| min. operating temperature | -25 °C | |
| Material | PVC | |
| Version | membrane cable gland | |
| Colour | black | |
| Length | 35 mm | |
| max. Cable diameter | 21 mm | |
| Mounting hole size | 26 mm |
Download
Logistics
| Customs tariff number | 39269097 |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
