10951CA01 | fastpoint
U cable gland, PVC, black, 10951CA01
Order No.: 12H3546
EAN: 4099891195731
MPN:
10951CA01
Unit Price (€ / pc.)
0.2856 € *
Available: 14 pcs.
Next delivery: 1,000 pcs. on 2025-08-08
Total Price:
0.29 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2856 €
10 pcs.
0.2475 €
100 pcs.
0.2094 €
500 pcs.
0.1904 €
1000 pcs.
0.1618 €
*incl. VAT plus shipping costs
Subject to prior sale
Grommets, type Fastpoint 42../10.

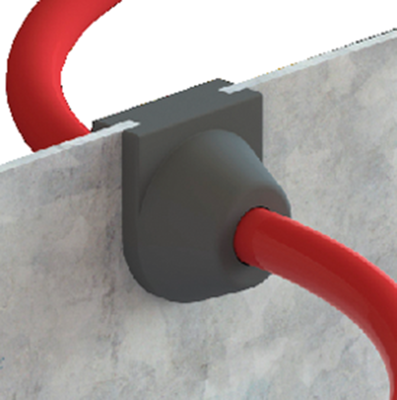

Slide into U-shaped panel cut-outs; Material: PVC. Operating temperatures: –25 to + 600 °C. Panel thickness (dimension H): 2.0 mm. Color: black.

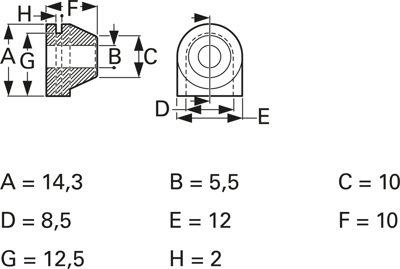

Technical attributes (type, cable diameter (ØB), dimensions (A, C, D, E, F, G)): 10951CA01, ØB 5.5, A, 14.3, C 10, D 8.5, E 12, F 10, G 12.5 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 60 °C | |
| Colour | black | |
| Product type | U cable gland | |
| min. operating temperature | -25 °C | |
| Mounting hole size | 12.5 mm | |
| Material | PVC | |
| Length | 14.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 40161000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
