9677AA00AS | fastpoint

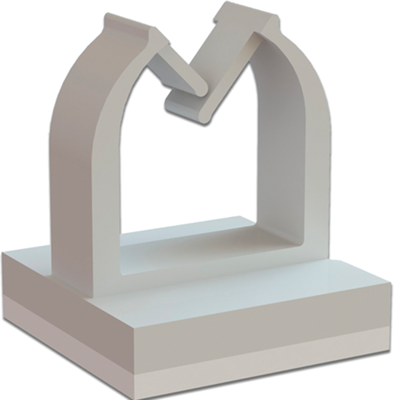

Mounting base, PA, natural, self-adhesive, (L x H) 12.1 x 12.9 mm, 9677AA00AS
Order No.: 12H8295
EAN: 4099891205669
MPN:
9677AA00AS
This item is no longer available.
As an alternative, we recommend the following item:
Mounting base, max. bundle Ø 9.3 mm, PA, natural, self-adhesive, (L x W x H) 12.7 x 12.7 x 13.4 mm, 13135AA00AS
Order No.: 12H8345
Manufacturer: fastpoint
per pc. 0.3808 € *
Cable clips, self-adhesive, type Fastpoint 9.
Material: PA 6.6. Adhesive tape: 0.9 mm PE foam carrier with acrylate adhesive. Temperature range: –35 to +85 °C. Color: plain.
Socket dimensions 12.7 x 12.7 mm.

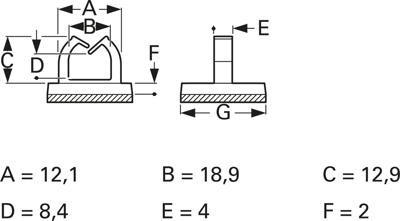

Technical attributes (type, dimensions (A, B, C, D E, F)): 9677AA00 AS, A 12.1, B 18.9, C 12.9, D 8.4, E 4.0, F 2.0 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PA | |
| Self-adhesive | Yes | |
| Height | 12.9 mm | |
| Product type | mounting base | |
| Colour | natural | |
| Length | 12.1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
