9672AA00AS | fastpoint
Mounting base, polyamide, natural, self-adhesive, (L x H) 7 x 4.2 mm
Order No.: 12H8290
EAN: 4099891205614
MPN:
9672AA00AS
As an alternative, we recommend the following item:
Mounting base, max. bundle Ø 4.6 mm, polyamide, natural, self-adhesive, (L x W x H) 9.4 x 9.4 x 5.7 mm
Order No.: 12H8340
Manufacturer: fastpoint
per pc. 0.2987 € *
*incl. VAT plus shipping costs

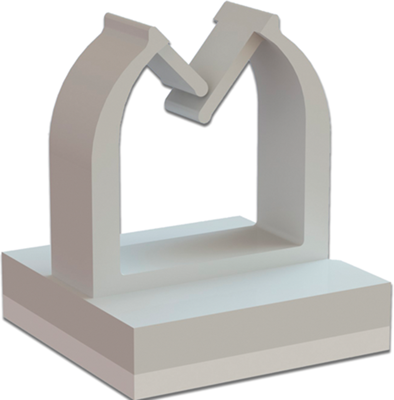

Cable clips, self-adhesive, type Fastpoint 9.
Material: PA 6.6. Adhesive tape: 0.9 mm PE foam carrier with acrylate adhesive. Temperature range: –35 to +85 °C. Color: plain.
Socket dimensions 9.4 x 9.4 mm.

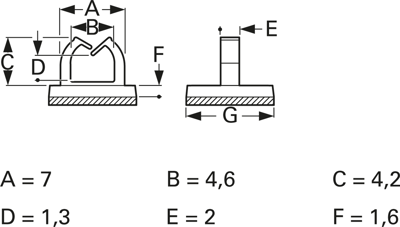

Technical attributes (type, dimensions (A, B, C, D E, F)): 9672AA00 AS, A 7.0, B 4.6, C 4.2, D 1.3, E 2.0, F 1.6 mm
Technical specifications
| Version | mounting base | |
| Colour | natural | |
| Height | 4.2 mm | |
| Length | 7 mm | |
| Material | polyamide | |
| Self-adhesive | Yes |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
