FT0109MN00RS | Fagor
Triac FT0109MN00RS
Unit Price (€ / pc.)
0.2511 € *
Available: 9,905 pcs.
Leadtime: On Request **
Total Price:
2.51 € *
Price list
Quantity
Price per unit*
10 pcs.
0.2511 €
100 pcs.
0.2130 €
500 pcs.
0.1868 €
1000 pcs.
0.1678 €
2500 pcs.
0.1499 €
*incl. VAT plus shipping costs
**Subject to prior sale

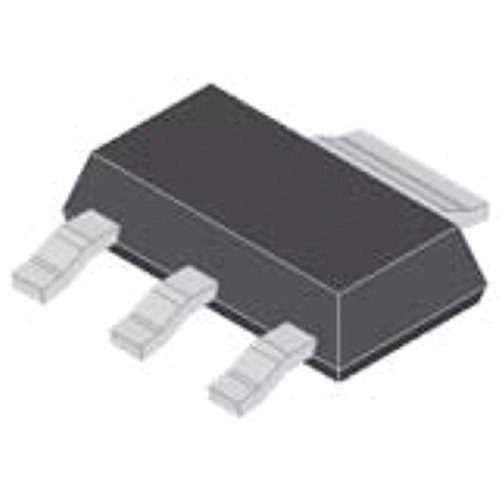

Logic level triac, FT0109MN00RS, Fagor
The FT0109MN00RS is a logic level triac designed to interface directly with low power drivers such as microcontrollers.
Features
- Glass/passivated die junctions
- Low current triac
- Ideal for automated plscement
- Low thermal resistance
- High surger current capability
- Low forward voltage drop
Technical specifications
| Number of pins | 3 | |
| Version | triac | |
| On-State Voltage | 1.5 V | |
| Gate trigger voltage | 1.3 V | |
| Gate trigger current | 10 mA | |
| Enclosure | SOT-223 | |
| max. holding current | 10 mA | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Rated current | 1 A |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85413000 |
| MSL | MSL 1 |
| Original Packaging | Reel with 2,500 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
