MG310 | Extech
Insulation tester, measurement of the polarization index, CAT III 600 V, Extech MG310
NCNR (non cancelable / non returnable)

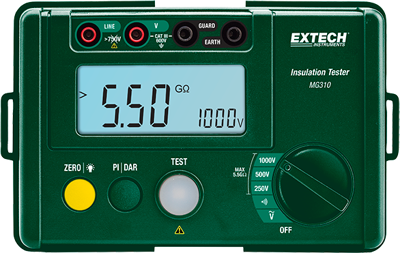

Digital Insulation Tester, MG310, extech
The MG310 is a Compact Insulation Resistance Tester which allows quick and easy testing/troubleshooting of motors, transducers, and other industrial appliances. Wide range measurement up to 1000V with Insulation Resistance to 5.5GΩ. Includes an easy snap on protective hard cover and soft pouch to conveniently transport your meter and accessories to the next job site or to safely store away. Featuring Low Resistance measurement with Zero function, Continuity beeper, Large 2000 count dual display with backlight, High voltage and overload indication, Auto-discharge and voltage output warning functions as well as Low battery indication. Complete with test leads, alligator clips, 6 x AA batteries, hard cover, and soft carrying case.
Features
- Test Voltages of 250V, 500V, and 1000V
- Measure Insulation Resistance to 5.5GOhm (autoranging)
- AC Voltage measurement from 30 to 600V
- Polarization Index measurement (PI)
- Dielectric Absorption Ratio measurement (DAR)
- 10MOhm internal resistance test
- Low Resistance measurement with Zero function
- Continuity beeper
- Large 2000 count dual display with backlight
| Filter | Property | Value |
|---|---|---|
| Product type | insulation tester | |
| Version | measurement of the polarization index | |
| Surge voltage category | CAT III 600 V | |
| Insulation resistance Min | 100 MΩ | |
| Insulation resistance Max | 5.5 Ω | |
| Max measured value AC voltage | 600 V | |
| Batteries | AA |
| Property | Value |
|---|---|
| Customs tariff number | 90303100 |
| Country of origin | CN |
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
