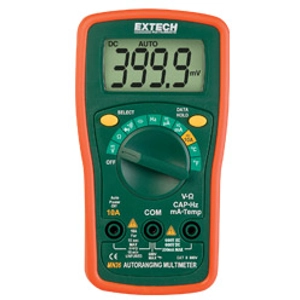

MN36 | Extech
Digital multimeter MN36, 10 A(DC), 10 A(AC), 600 VDC, 600 VAC, 1 pF to 100 µF, CAT II 600 V
Order No.: 22K0886
EAN: 4099891456528
MPN:
MN36
Unit Price (€ / pc.)
47.4810 € *
Available: 1 pcs.
Leadtime: 2 Weeks **
Digital Mini MultiMetercMN36, extech
The Extech MN36 digital multimeter is compact but still packed with features. Capable of measuring AC and DC voltage up to 600 volts, the MN36 is autoranging, which means it automatically displays readings with the proper decimal place location and maximum resolution. Comes with protective rubber holster, 2xAAA batteries, bead wire Type K temp. probe and test leads.
Features
- Large easy to read digital display
- AC/DC Voltage, DC Current, Resistance, Capacitance, Frequency, Type K Temperature, Continuity/Diode
- Convenient mini size with protective rubber holster and tilt stand
- Data Hold locks reading in the display
- Includes protective rubber holster, 2xAAA batteries, bead wire Type K temp. probe and test leads
Technical specifications
| Display Digits | 4000 | |
| Version | digital multimeter | |
| TRMS possible | No | |
| Capacity range | 1 pF to 100 µF | |
| max. measured current value (AC) | 10 A | |
| max. measured current value (DC) | 10 A | |
| max. resistance range | 40 MΩ | |
| max. voltage measuring range (AC) | 600 V | |
| max. voltage measuring range (DC) | 600 V | |
| Surge voltage category | CAT II 600 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 90303100 |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
