LCR200 | Extech

Passive Component LCR Meter, LCR200, extech

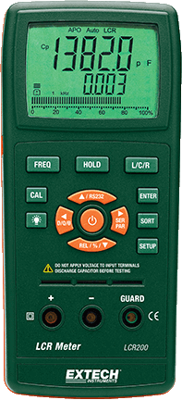

The LCR200 is a passive component LCR meter. Discover the tremendous value with a range of features that help this meter provide the precise measurements you need. See simultaneous 20,000/2,000 count display of the primary parameter on the high contrast backlit display. You can set Hi/Lo limits using absolute values or percentages. Open and Short Zero removes unwanted stray impedances from the measurement. Use the built-in test fixture or external test leads (included). The LCR200 has an Auto Power Off function that can also be disabled and a low battery indicator to alert you when to replace the batteries. Complete with test leads and 9V battery.

Features

• Measures Inductance, Capacitance, and Resistance with secondary parameter Q (Quality), D (Dissipation), R (Resistance), P (Phase), ESR (Equivalent Series Resistance)
• Simultaneous 20,000/2,000 count backlit display of the primary parameter (L, C or R) with the secondary parameter
• Auto Select measurement function with 1kHz default test frequency
• Five test frequencies
• Set Hi/Lo limits using absolute values or percentage limits
• Relative mode function
• Parallel or Series equivalent circuit
• Auto power off, Low battery and overrange indicators
• Built-in test fixture or use external test leads
