CG206 | Extech
EXTECH CG206 COATING THICKNESS TESTER
Active
Total price
(
300.9867 €
* / pcs.)
300.99 €
Currently not in stock, we will order for you
Please send price/quantity requests to info@buerklin.com
Description
Product by Extech at Bürklin Elektronik

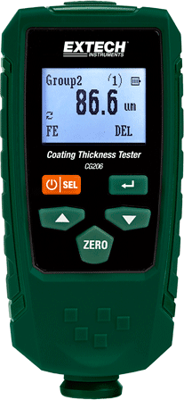

Coating Thickness Tester, CG206, extech
Dual technology provides automatic recognition for ferrous and non-ferrous substrates without having you guess the material. Allows for quick, one-handed operation, non- destructive measurement of the coating thickness on various surfaces.
Features
- Intelligent automatic substrate detection
- Magnetic induction for ferrous substrates
- Eddy current measurement for non-ferrous substrates
- User-friendly menu system
- Two working modes: direct and group
- The memory stores 1500 measured values (30 group measured values)
- Two-point calibration with zero adjustment
- 8-step adjustable backlight
- USB interface including software
- Low battery indicator
- Complete with two AAA batteries, USB cable, software, calibration iron, calibration aluminum, precision standards and pouch
Technical specifications
| Resolution | 0.1 μm | |
| Accuracy | ±2.5 % | |
| measurement range | 0 to 1350 μm |
Logistics
| Country of origin | CN |
| Customs tariff number | 90248000 |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
