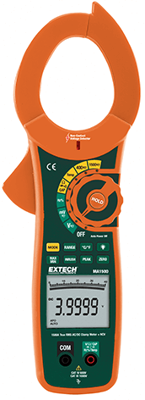

MA1500 | Extech
TRMS AC/DC clamp meter MA1500, 1500 A (DC), 1500 A (AC), 1000 V (DC), 750 V (AC), opening 52 mm, CAT III 1000 V, CAT IV 600 V
Unit Price (€ / pc.)
292.5853 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
292.59 € *
Price list
Quantity
Price per unit*
1 pcs.
292.5853 €
5 pcs.
263.3351 €
*incl. VAT plus shipping costs
Subject to prior sale
AC/DC Clamp Meter, MA1500, extech
For quick verification of the presence of live wires before testing plus True RMS and current ranges of 400A and 1500A
Features
- True RMS value for accurate measurements of non-sinusoidal waveforms
- Built-in non-contact voltage detector with LED alarm
- Includes multimeter functions
- Relative mode for capacity zero and offset adjustment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | AC/DC clamp meter | |
| TRMS possible | Yes | |
| Pliers opening | 52 mm | |
| Surge voltage category | CAT III 1000 V, CAT IV 600 V | |
| max. measured current value (DC) | 1500 A | |
| max. measured current value (AC) | 1500 A | |
| max. voltage measuring range (DC) | 1000 V | |
| max. voltage measuring range (AC) | 750 V | |
| max. resistance range | 40 MΩ | |
| min. Measured value (frequency) | 0.01 Hz | |
| max. measured value (frequency) | 40 MHz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
