MA120 | Extech
TRMS AC/DC mini clamp meter MA120, 200 A (DC), 200 A (AC), opening 18 mm, CAT II 600 V, CAT III 300 V
Unit Price (€ / pc.)
114.9659 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
114.97 € *
Price list
Quantity
Price per unit*
1 pcs.
114.9659 €
5 pcs.
103.4705 €
*incl. VAT plus shipping costs
Subject to prior sale

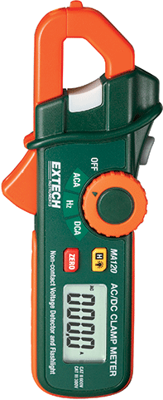

Mini Clamp Meter, MA120, extech
The MA120 is a 200 Amp AC/DC mini clamp meter with built-in AC voltage detector and built in LED flashlight. The meter measures Frequency up to 1 kHz with 0.01Hz resolution, auto ranges with auto power off and data hold functions. Complete with a year warranty, 2 AAA batteries and soft case.
Features
- Measures 200A AC Current up to 100mA resolution
- 3% basic ACA accuracy
- 0.7" (18mm) jaw opening; 300MCM cable size
- 2000 count LCD display
- Non-contact AC Voltage detector (120/240VAC, 50/60Hz) via clamp tip
- Built-in white LED flashlight
- Measures Frequency up to 1kHz with 0.01Hz resolution
- Autoranging with Auto Power Off and Data hold function
Technical specifications
| Filter | Property | Value |
|---|---|---|
| TRMS possible | Yes | |
| Pliers opening | 18 mm | |
| min. Measured value (frequency) | 0.01 Hz | |
| max. measured current value (AC) | 200 A | |
| max. measured value (frequency) | 1 kHz | |
| Surge voltage category | CAT II 600 V, CAT III 300 V | |
| Product type | AC/DC mini clamp meter | |
| max. measured current value (DC) | 200 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
