EX655 | Extech

Clamp Meter + NCV, EX655, extech

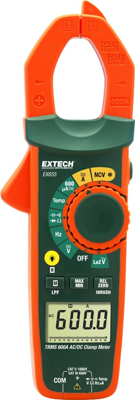

The EX655 is a 600A True RMS AC/DC Clamp meter. This clamp meter also measures AC/DC voltage, resistence, capacitance, frequency, temperature, continuity/diode test and has an NCV detector. The EX655 has a 1.18" jaw size which accomodates conductors up to 350 MCM. This meter also features a 6000 count backlit LCD display, data hold, min/max, relative function,low pass filter, inrush mode, DC zero function, LCD trending bargraph, auto power off and a convenient LED worklight. Complete with test leads general purpose bead wire Temperature probe, and 3 AAA batteries.

Features

• True RMS value for accurate AC measurements
• 30 mm (1.18") jaw width for conductors up to 350 MCM
• Backlit LCD display with 6000 counters and bargraph
• Low impedance (LoZ) prevents incorrect measurements caused by ghost voltages
• Low pass filter (LPF) for accurate measurements of variable frequency control signals
• Built-in non-contact voltage detector (NCV) with LED display
• Built-in LED flashlight for working in dimly lit areas
• The functions include: NCV, AC/DC voltage, AC/DC current, AC/DC microcurrent, resistance, capacitance, frequency, type K temperature, diode test, continuity
• The power-on mode detects current surges during motor start
• Complete with test leads, 3 AAA batteries and universal bead wire temperature sensor
