380947 | Extech
TRMS AC/DC mini clamp meter 380947, 400 A (DC), 400 A (AC), opening 23 mm, CAT III 300 V
Order No.: 22K0815
EAN: 4099891457082
MPN:
380947
Unit Price (€ / pc.)
414.6198 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
414.62 € *
Price list
Quantity
Price per unit*
1 pcs.
414.6198 €
5 pcs.
373.1602 €
*incl. VAT plus shipping costs
Subject to prior sale

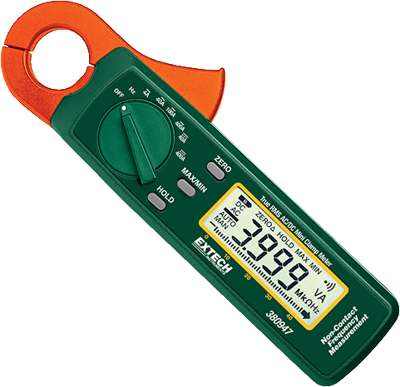

AC/DC Mini Clamp Meter, 380947, extech
The compact Extech 380947 is a 400 Amp True RMS mini clamp meter. This meter has a small diameter jaw designed to reach in small areas while providing 1mA resolution and very low-current sensitivity. This mini clamp meter is useful for current and frequency related troubleshooting in plant maintenance, electrical, HVAC, and telecom work, as well as home electrical, fleet maintenance, marine, and motorcycle repairs. Comes with battery and manual.
Features
- 0.9" (23mm) jaw opening
- True RMS measurements with 1mA AC resolution
- Non-contact Frequency measurements to 10kHz through the clamp jaws
- Fast 40 segment bargraph
- One touch Auto Zero
- Min/Max, Data hold and Auto power off
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Surge voltage category | CAT III 300 V | |
| max. measured value (frequency) | 10 kHz | |
| max. measured current value (AC) | 400 A | |
| Pliers opening | 23 mm | |
| Product type | AC/DC mini clamp meter | |
| max. measured current value (DC) | 400 A | |
| min. Measured value (frequency) | 0.01 Hz | |
| TRMS possible | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 90303100 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
