380942 | Extech

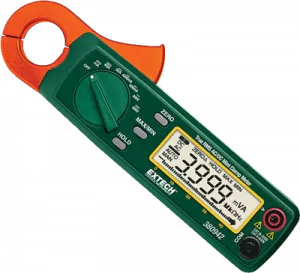

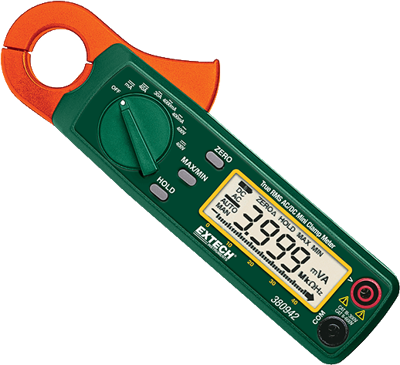

TRMS AC/DC mini clamp meter 380942, 40 A (DC), 30 A (AC), 400 V (DC), 400 V (AC), opening 23 mm, CAT III 300 V

Order No.: 22K0813
EAN: 793950389423
MPN:
380942
Extech
380942 Extech Clamp Meters
Image may differ
Print
Key Specification:
Product type AC/DC mini clamp meter
TRMS possible Yes
Pliers opening 23 mm
Surge voltage category CAT III 300 V
Download Datasheet Technical specifications

NCNR (non cancelable / non returnable)

Unit Price (€ / pc.)
571.7474 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
571.75 € *
Price list
Quantity
Price per unit*
1 pcs.
571.7474 €
5 pcs.
514.5798 €
*incl. VAT plus shipping costs
Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance

AC/DC mini pliers meter, 380942, extech

The compact Extech 380942 is a 30 Amp mini AC/DC clamp meter. The clamp meter has a remarkable 0.1mA resolution (AC), very low-current sensitivity, and a small diameter jaw designed to reach into small areas. The 30 Amp range with 0.1mA (AC) and 1mA (DC) resolution is optimized for finding problems where very low current variances would be missed by standard clamp meters. This mini clamp meter is useful for troubleshooting tasks in plant maintenance, electrical, HVAC, and telecom work, as well as residential electrical, fleet maintenance, marine, and motorcycle repairs. This CAT III-rated True RMS mini clamp meter comes with test leads, 2 AAA batteries, soft carrying case, and user manual.

Features

  • Low AC/DC current measurements with high resolution down to 0.1 mA AC and 1 mA DC
  • Voltage measurements with test leads
  • Fast 40-segment bar graph
  • Auto-Zero at the touch of a button for DC current measurements
  • Min/max, data storage and automatic switch-off
Technical specifications
Product type AC/DC mini clamp meter
TRMS possible Yes
Pliers opening 23 mm
Surge voltage category CAT III 300 V
max. measured current value (DC) 40 A
max. measured current value (AC) 30 A
max. voltage measuring range (DC) 400 V
max. voltage measuring range (AC) 400 V
Articles of same specification 0
Logistics
Customs tariff number 90303100
Country of origin TW
Compliance
RoHS conform Yes
SVHC free Yes
