380941 | Extech
TRMS AC/DC mini clamp meter 380941, 200 A (DC), 200 A (AC), 400 V (DC), 400 V (AC), opening 23 mm, CAT III 300 V
Order No.: 22K0811
EAN: 4099891457044
MPN:
380941
Unit Price (€ / pc.)
365.1277 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
365.13 € *
Price list
Quantity
Price per unit*
1 pcs.
365.1277 €
5 pcs.
328.6185 €
*incl. VAT plus shipping costs
Subject to prior sale

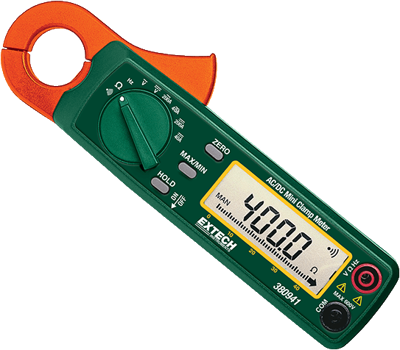

AC/DC Mini Clamp Meter, 380941, extech
The compact Extech 380941 is a 200 Amp mini AC/DC clamp meter with a small diameter jaw designed to reach in small areas while providing 10mA resolution (DC) and very low-current sensitivity. This mini clamp meter is useful for troubleshooting tasks in plant maintenance, electrical, HVAC, and telecom work, as well as home electrical, fleet maintenance, marine, and motorcycle repairs. The 380941 has a CAT III 300-Volt safety rating and a one year warranty. Comes with batteries and manual.
Features
- 0.9" (23mm) jaw opening
- High resolution to 10mA AC/DC
- Voltage, Resistance, and Frequency
- Fast 40 segment bargraph
- One touch Auto Zero for DC Current measurements
- Min/Max, Data hold and Auto power off
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Surge voltage category | CAT III 300 V | |
| max. voltage measuring range (AC) | 400 V | |
| max. measured value (frequency) | 100 kHz | |
| TRMS possible | Yes | |
| max. voltage measuring range (DC) | 400 V | |
| Pliers opening | 23 mm | |
| max. measured current value (DC) | 200 A | |
| Product type | AC/DC mini clamp meter | |
| max. resistance range | 400 Ω | |
| max. measured current value (AC) | 200 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303100 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
