380926 | Extech
TRMS AC/DC multimeter clamp 380926, 2000 A (DC), 2000 A (AC), 1000 V (DC), 1000 V (AC), opening 50 mm, CAT IV 600 V
Order No.: 22K0809
EAN: 793950389263
MPN:
380926
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
370.0305 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
370.03 € *
Price list
Quantity
Price per unit*
1 pcs.
370.0305 €
5 pcs.
333.0215 €
*incl. VAT plus shipping costs
Subject to prior sale

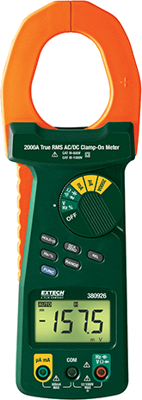

AC/DC Clamp Meter, 380926, extech
The 380926 is a category IV, 2000-Amp, TRMS AC/DC Clamp Meter which has a rugged 2 in. jaw that accommodates two 500MCM cables. A built-in full-function DMM can measure AC/DC Voltage and Current, Resistance, capacitance, frequency, Duty Cycle, Diode and Continuity. Measurements are displayed on the large 4000 count backlit display for easy viewing in dimly lit areas. Additional features include DCA push button zero, Data Hold, and Relative function. Complete with test leads and 9V battery.
Features
- AC/DC current via terminal with 0.1A resolution
- Large jaw size for measurements at high currents
- Function Operating cycle
- Large display with backlight
- Push button zeroing improved DC accuracy
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | AC/DC multimeter clamp | |
| TRMS possible | Yes | |
| Pliers opening | 50 mm | |
| Surge voltage category | CAT IV 600 V | |
| max. measured current value (DC) | 2000 A | |
| max. measured current value (AC) | 2000 A | |
| max. voltage measuring range (DC) | 1000 V | |
| max. voltage measuring range (AC) | 1000 V | |
| max. resistance range | 40 MΩ | |
| max. measured value (frequency) | 100 kHz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303100 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
