PRC15 | Extech

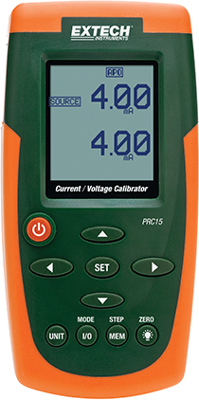

EXTECH PRC15 CURRENT & VOLTAGE CALIBRATOR
Order No.: 22K0930
EAN: 793950710159
MPN:
PRC15
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
541.8308 € *
Available: 1 pcs.
Current and Voltage Calibrator/Meter, PRC15, extech
The PRC15 enables plant maintenance and electrical technicians to test and calibrate a wide variety of process control equipment, including transmitters, transducers, indicators, sensors, instrumentation, robotic systems, thermocouples, and other industrial system components. Includes test leads, alligator clips, 100V-240V AC universal adaptor with 4 plugs, six AA batteries, and hard carrying case.
Features
- 0 to 24 mA (-25 to 125%) readout
- 0 to 20V DC calibration source
- Up to five user adjustable calibration presets
- Palm-sized double molded housing and large dot-matrix digital backlit LCD
- Standard banana I/O ports
- Large battery bank for extended work cycle
- External power adapter for continuous work cycle
- Includes test leads, alligator clips, 100V-240V AC universal adaptor with 4 plugs, six AA batteries, and hard carrying case
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | current and voltage calibrator | |
| measurement range | 0-50 mA, 0-19.99 V | |
| Resolution | 10 mV | |
| Voltage | 20 V | |
| Length | 159 mm | |
| Width | 80 mm | |
| Depth | 44 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303320 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Electrical equipment take-back |  |
