382213 | Extech
Laboratory power supply, 0 bis 30 VDC, outputs: 3 (3 A), 0 to 3 A, 110-220 VAC, 382213
Order No.: 22K0336
EAN: 793950382134
MPN:
382213
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
319.0390 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
319.04 € *
Price list
Quantity
Price per unit*
1 pcs.
319.0390 €
5 pcs.
287.1351 €
*incl. VAT plus shipping costs
Subject to prior sale

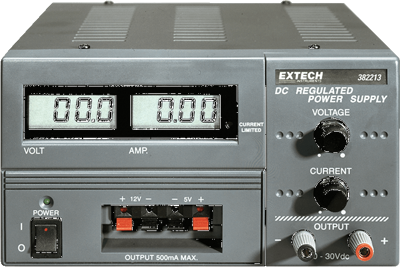

Power supply, 382213, extech
Ideal for a variety of applications, including bench testing, field service, hobby and telecom equipment, the Extech 382213 compact digital solid state DC power supply delivers clean, reliable performance and protects itself and all DUTs from damage. It offers three power output options: adjustable 0-30 volts, 0-3 amps and fixed 5 and 12 volt outputs. Equipped with a digital LCD display, the 382213 also features overload and short-circuit protection, constant voltage/current, easy snap-on connections for 5 and 12-volt outputs, and a current-limited LED indicator on the front panel. Complete with power cord.
Features
- Adjustable voltage and current output
- Simple snap-on connections for fixed 5V/0.5A and 12V/1A outputs
- Constant voltage or current
- Display of current limitation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 0 to 30 VDC | |
| Output current | 3 A | |
| Range of Output Currence | 0 to 3 A | |
| Input voltage AC | 110-220 VAC | |
| Number of outputs | 3 | |
| Width | 152 mm | |
| Height | 142 mm | |
| Depth | 242 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
