1510 0000 0300 | EVOline

Extra-flat plug EVOline® with 5 mm installation height, white

Order No.: 05N9076
EAN: 4044657008022
MPN:
1510 0000 0300
Series: EVOline Plug

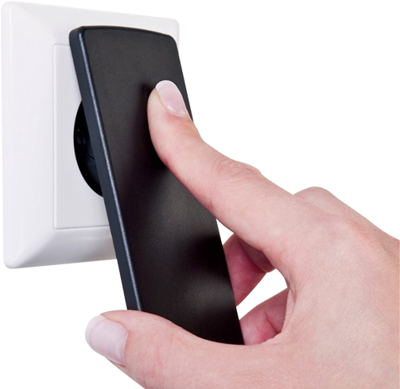

1510 0000 0300 EVOline Device Connectors Image 1

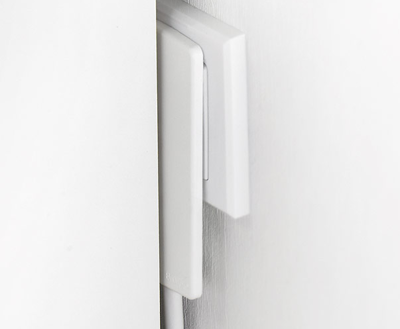

1510 0000 0300 EVOline Device Connectors Image 2

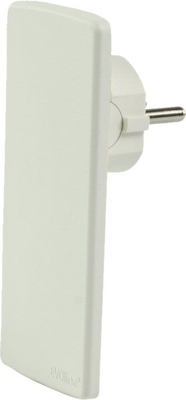

1510 0000 0300 EVOline Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
14.1610 € *
Available: 14 pcs.
Total Price:
14.16 € *
Price list
Quantity
Price per unit*
1 pcs.
14.1610 €
20 pcs.
12.4712 €
60 pcs.
12.0428 €
100 pcs.
11.3645 €
500 pcs.
10.8290 €
*incl. VAT plus shipping costs
Subject to prior sale

Schuko-style angled plugs, type EVOline Plug.

Projection height in inserted state approx. 5.0 mm only, the moving mating face facilitates easy removal from the outlet, double ground contact system; Rated voltage: 250 V. Rated current: 16 A. Connection: 0.75 to 1.5 mm² screw terminals. Safety class: I. Degree of protection: IP 20. Standards: DIN 49441R2, VDE 0620-1. Length 115 mm.

Type: EVOline Plug, plug, white

Technical specifications
Filter Property Value
Product type german schuko-style plug
Version extra flat
Country code Germany
Pin number 2 pole + PE
Connection screw connection
Cable cross-section 1.5 mm²
Colour white
Nominal power 16 A/250 V
Degree of protection (IP) IP20
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Original Packaging Carton with 20 pieces
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
