339-1SURSYGW/S530-A3 | EVERLIGHT
LED, THT, Ø 5 mm, red/yellow-green, 570 nm, 0.025 to 0.05 cd, 70°, 339-1SURSYGW/S530-A3
Unit Price (€ / pc.)
0.3070 € *
Available: 15,050 pcs.
Total Price:
6.14 € *
Price list
Quantity
Price per unit*
20 pcs.
0.3070 €
100 pcs.
0.2273 €
500 pcs.
0.1809 €
2000 pcs.
0.1488 €
4000 pcs.
0.1333 €
*incl. VAT plus shipping costs
Subject to prior sale

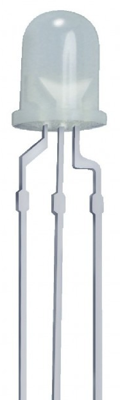

Lamp, 339-1SURSYGW/S530-A3, EVERLIGHT
The 339-1SURSYGW/S530-A3 is a lamp contain two integral chips and is available as both bicolor and bipolar types. The Brilliant red and brilliant yellow green light is emitted by diodes of AlGaInP and AlGaInP.
Features
- Two chips are matched for uniform light output, wide viewing angle
- Long life - solid state reliability
- I.C. compatible/Low power consumption
- Compliance with EU REACH
- Compliance halogen free
Applications
- TV set
- Monitor
- Telephone
- Computer
Technical specifications
| Filter | Property | Value |
|---|---|---|
| On-State Voltage | 2.4 V | |
| Wavelength | 570 nm | |
| diameter | 5 mm | |
| Assembly | THT | |
| Light intensity min. | 0.025 cd | |
| Lens | clear | |
| Forward Current | 25 mA | |
| max. operating temperature | 85 °C | |
| Light intensity typ. | 0.05 cd | |
| Colour of the LED | red/yellow-green | |
| Radiation angle | 70 ° | |
| Number of LEDs | 2 | |
| Length | 8.6 mm | |
| min. operating temperature | -40 °C | |
| Width | 5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85414100 |
| Original Packaging | Bar with 500 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
