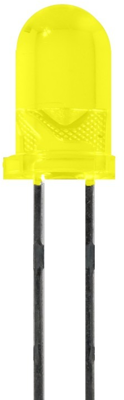

333-2UYD/S530-A3 | EVERLIGHT
LED, THT, Ø 5 mm, Yellow, 589 nm, 0.16 to 0.32 cd, 30°, 333-2UYD/S530-A3
Unit Price (€ / pc.)
0.0524 € *
Standard delivery time from the manufacturer is: 14 Weeks
Lamp, 333-2UYD/S530-A3, EVERLIGHT
The 333-2UYD/S530-A3 is specially designed for applications requiring higher brightness.
Features
- Choice of various viewing angles
- Reliable and robust
- Compliance with EU REACH
- Compliance halogen free
Applications
- TV set
- Monitor
- Telephone
- Computer
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Wavelength | 589 nm | |
| diameter | 5 mm | |
| max. operating temperature | 85 °C | |
| Length | 6.2 mm | |
| min. operating temperature | -40 °C | |
| Assembly | THT | |
| Number of LEDs | 1 | |
| Width | 13.1 mm | |
| On-State Voltage | 2.4 V | |
| Colour of the LED | Yellow | |
| Lens | yellow | |
| Light intensity typ. | 0.32 cd | |
| Forward Current | 25 mA | |
| Light intensity min. | 0.16 cd | |
| Radiation angle | 30 ° |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| Original Packaging | Bag with 500 pieces |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
