333-2UYC/S530-A2 | EVERLIGHT
LED, THT, Ø 5 mm, Yellow, 589 nm, 0.63 to 1.66 cd, 10°, 333-2UYC/S530-A2
Unit Price (€ / pc.)
0.0785 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
1.96 € *
Price list
Quantity
Price per unit*
25 pcs.
0.0785 €
125 pcs.
0.0702 €
500 pcs.
0.0631 €
2000 pcs.
0.0559 €
5000 pcs.
0.0512 €
*incl. VAT plus shipping costs
Subject to prior sale

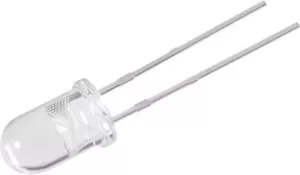

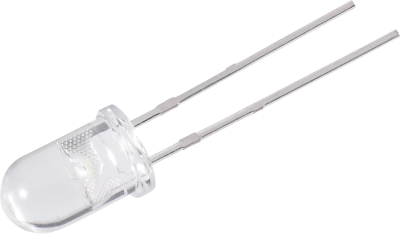

Round shape LED, 333-2UYC/S530-A2, EVERLIGHT
The 333-2UYC/S530-A2 is specially designed for applications requiring higher brightness.
Features
- Choice of various viewing angles
- Reliable and robust
Applications
- TV set
- Monitor
- Telephone
- Computer
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Wavelength | 589 nm | |
| Radiation angle | 10 ° | |
| Forward Current | 25 mA | |
| diameter | 5 mm | |
| Width | 5 mm | |
| min. operating temperature | -40 °C | |
| Length | 8.6 mm | |
| On-State Voltage | 2.4 V | |
| Number of LEDs | 1 | |
| Lens | clear | |
| Assembly | THT | |
| Colour of the LED | Yellow | |
| Light intensity typ. | 1.66 cd | |
| max. operating temperature | 85 °C | |
| Light intensity min. | 0.63 cd |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 500 pieces |
| Customs tariff number | 85414100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
