333-2SURC/S530-A2 | EVERLIGHT
LED, THT, Ø 5 mm, red, 631 nm, 0.34 to 0.837 cd, 10°, 333-2SURC/S530-A2
Unit Price (€ / pc.)
0.1583 € *
Available: 16,354 pcs.
Total Price:
1.58 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1583 €
100 pcs.
0.1249 €
500 pcs.
0.1023 €
1000 pcs.
0.0904 €
2500 pcs.
0.0821 €
*incl. VAT plus shipping costs
Subject to prior sale

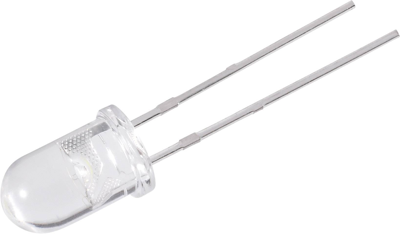

Round shape LED, 333-2SURC/S530-A2, EVERLIGHT
The 333-2SURC/S530-A2 is specially designed for applications requiring higher brightness than that achievable with standard lamps.
Features
- Choice of various viewing angles
- Reliable and robust
Applications
- TV set
- Monitor
- Telephone
- Computer
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 5 mm | |
| Lens | clear | |
| Number of LEDs | 1 | |
| Light intensity min. | 0.34 cd | |
| On-State Voltage | 2.4 V | |
| Length | 8.6 mm | |
| Wavelength | 631 nm | |
| max. operating temperature | 85 °C | |
| Assembly | THT | |
| Radiation angle | 10 ° | |
| min. operating temperature | -40 °C | |
| diameter | 5 mm | |
| Forward Current | 25 mA | |
| Colour of the LED | red | |
| Light intensity typ. | 0.837 cd |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85414100 |
| Original Packaging | Bulk with 500 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
