264-7SYGC/S530-E1 | EVERLIGHT
LED, THT, Ø 3 mm, green/yellow, 575 nm, 0.04 to 0.05 cd, 40°, 264-7SYGC/S530-E1
Discontinued
Unit Price (€ / pc.)
0.1785 € *
Available: 2,006 pcs.
Total Price:
0.89 € *
Price list
Quantity
Price per unit*
5 pcs.
0.1785 €
50 pcs.
0.1547 €
100 pcs.
0.1309 €
500 pcs.
0.1071 €
1000 pcs.
0.0833 €
*incl. VAT plus shipping costs
Subject to prior sale

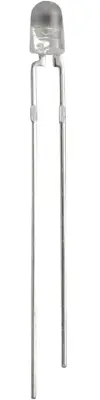

Round shape LED, 264-7SYGC/S530-E1, EVERLIGHT
The 264-7SYGC/S530-E1 is specially designed for applications requiring higher brightness than that achievable with standard lamps.
Features
- High luminous power
- Can be driven at low current
- 2,54 mm lead spacing
Applications
- TV set
- Monitor
- Telephone
- Computer
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 3 mm | |
| Radiation angle | 40 ° | |
| Lens | clear | |
| Wavelength | 575 nm | |
| Forward Current | 20 mA | |
| max. operating temperature | 85 °C | |
| Length | 4.5 mm | |
| Number of LEDs | 2 | |
| Light intensity typ. | 0.05 cd | |
| Assembly | THT | |
| Width | 2.9 mm | |
| min. operating temperature | -40 °C | |
| Light intensity min. | 0.04 cd | |
| On-State Voltage | 2 V | |
| Colour of the LED | green/yellow |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
