17-21SYGC/S530-E3/TR8 | EVERLIGHT
LED, SMD, 0805, green, 573 nm, 0.022 to 0.031 cd, 140°, 17-21SYGC/S530-E3/TR8
Discontinued
Unit Price (€ / pc.)
0.2321 € *
Available: 20 pcs.
Total Price:
2.32 € *
Price list
Quantity
Price per unit*
10 pcs.
0.2321 €
50 pcs.
0.1964 €
100 pcs.
0.1607 €
500 pcs.
0.1131 €
1000 pcs.
0.0893 €
*incl. VAT plus shipping costs
Subject to prior sale

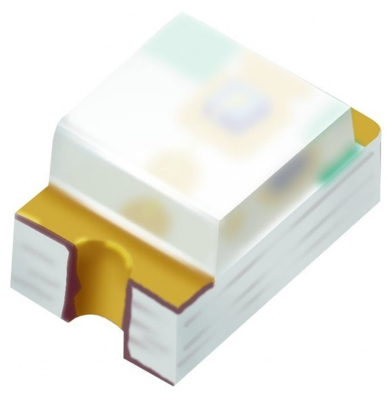

Package chip LED, 17-21SYGC/S530-E3/TR8, EVERLIGHT
The 17-21SYGC/S530-E3/TR8 is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained. ․Besides, lightweight makes it ideal for miniature applications.
Features
- Compatible with automatic placement equipment
- Compatible with infrared and vapor phase reflow solder process
- Mono-color type
Applications
- Automotive: backlighting in dashboard and switch
- Telecommunication: indicator and backlighting in telephone and fax
- Flat backlight for LCD, switch and symbol
- General use
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour of the LED | green | |
| Wavelength | 573 nm | |
| Width | 1.25 mm | |
| Enclosure | 0805 | |
| On-State Voltage | 2.4 V | |
| Lens | clear | |
| Light intensity min. | 0.022 cd | |
| Forward Current | 25 mA | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Number of LEDs | 1 | |
| Radiation angle | 140 ° | |
| Light intensity typ. | 0.031 cd | |
| Length | 2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 3,000 pieces |
| MSL | MSL 2 |
| Country of origin | TW |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
