16-213SYGC/S530-E1/TR8 | EVERLIGHT
LED, SMD, 0402, green, 573 nm, 0.01 to 0.015 cd, 120°, 16-213SYGC/S530-E1/TR8
Unit Price (€ / pc.)
0.0558 € *
Standard delivery time from the manufacturer is: 12 Weeks

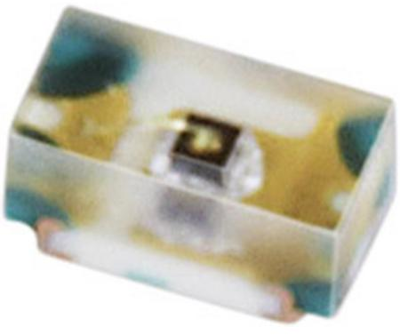

Package chip LED, 16-213SYGC/S530-E1/TR8, EVERLIGHT
The 16-213SYGC/S530-E1/TR8 is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained. ․Besides, lightweight makes it ideal for miniature applications.
Features
- Compatible with automatic placement equipment
- Compatible with infrared and vapor phase reflow solder process
- Mono-color type
Applications
- Automotive: backlighting in dashboard and switch
- Telecommunication: indicator and backlighting in telephone and fax
- Flat backlight for LCD, switch and symbol
- General use
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Wavelength | 573 nm | |
| max. operating temperature | 85 °C | |
| Length | 1 mm | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Number of LEDs | 1 | |
| Width | 0.5 mm | |
| On-State Voltage | 2.4 V | |
| Colour of the LED | green | |
| Lens | clear | |
| Light intensity typ. | 0.015 cd | |
| Forward Current | 25 mA | |
| Enclosure | 0402 | |
| Light intensity min. | 0.01 cd | |
| Radiation angle | 120 ° |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| Original Packaging | Reel with 3,000 pieces |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
