005.42.110 | Ettinger

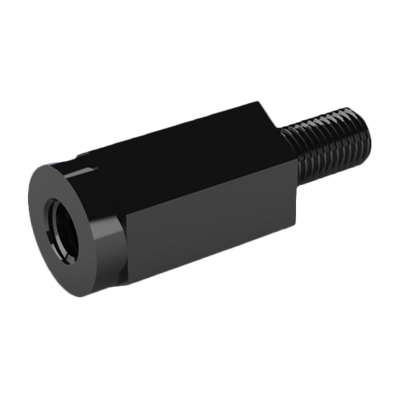

Hexagon spacer bolt, external/internal thread, M2.5/M2.5, 11 mm, PA, 005.42.110
Order No.: 18H3680
EAN: 4099889493344
MPN:
005.42.110
5.42.110
Unit Price (€ / pc.)
0.4998 € *
Available: 2,010 pcs.
Available in 5 Days: 800 pcs. - if ordered today
Total Price:
0.50 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4998 €
10 pcs.
0.4641 €
100 pcs.
0.4046 €
500 pcs.
0.3570 €
1000 pcs.
0.3094 €
*incl. VAT plus shipping costs
Subject to prior sale
Distance bolt type B female/male thread
In hexagonal design with injected external thread.
Material: Polyamide 6.6 black, UL 94 HB
Temperature resistance: approx. + 110 °C
Technical specifications
| Filter | Property | Value |
|---|---|---|
| spanner size | 5 mm | |
| Bolt length | 11 mm | |
| Internal thread length | 9 mm | |
| External thread length | 8 mm | |
| Thread size | M2.5/M2.5 | |
| Length | 19 mm | |
| Colour | black | |
| Material | PA | |
| Inner diameter | 2.5 mm | |
| Design | hexagon | |
| Outer diameter | 2.5 mm | |
| Product type | spacer bolt | |
| Version | external/internal thread |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 81089090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
