075.08.160 | Ettinger

Guide rails for circuit board, 75.08.160

Order No.: 12H317
EAN: 4099889464337
MPN:
075.08.160
75.08.160

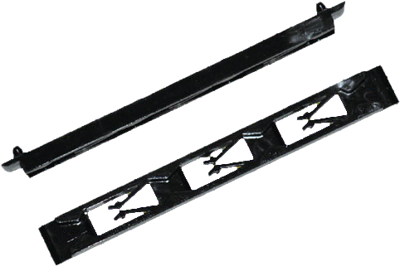

075.08.160 Ettinger PCB Fasteners Image 1
075.08.160 Ettinger PCB Fasteners Image 2
Image may differ
Unit Price (€ / pc.)
4.0817 € *
Available in 5 Days: 530 pcs. - if ordered today
Total Price:
4.08 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0817 €
10 pcs.
3.6771 €
50 pcs.
3.4629 €
100 pcs.
3.1654 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB guides, type 75.08.

The spring loaded guide grooves support PCBs with a thickness of 1.2 to 2.5 mm and are mounted in metal frames or directly on case walls. Mounted by means of snap-on fasteners; type 75.08.160 for screw mounting. The PCB guide is particularly resistant to vibration; Material: polycarbonate, UL 94 V-2, black.

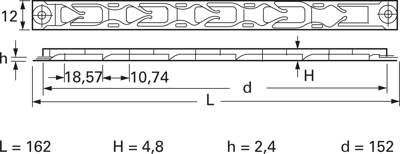

Technical attributes (type, dimensions): 160, 162, H 4.8, h 2.4, d 152 mm

Technical specifications
Version guide rails
Material PC
Colour black
Logistics
Country of origin DE
Customs tariff number 39269097
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
