003.20.081 | Ettinger

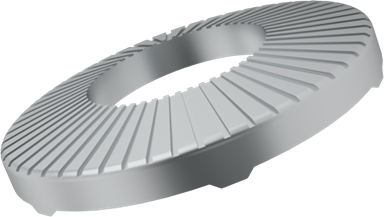

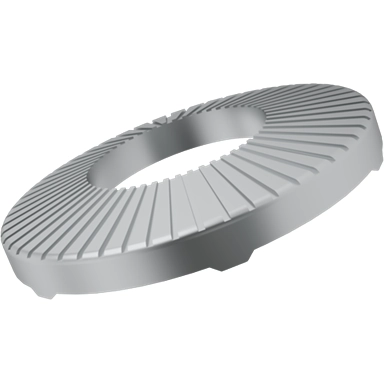

Contact washer, M8, H 1.4 mm, outer Ø 16.2 mm, spring steel, DIN 17222, 003.20.081
Order No.: 16H9832
EAN: 4099889503296
MPN:
003.20.081
3.20.081
Unit Price (€ / pc.)
0.1357 € *
Available: 1,079 pcs.
Available in 5 Days: 196,200 pcs. - if ordered today
Total Price:
13.57 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1357 €
500 pcs.
0.1166 €
1000 pcs.
0.1012 €
5000 pcs.
0.0893 €
10000 pcs.
0.0774 €
*incl. VAT plus shipping costs
Subject to prior sale
Contact washers for cable connections, type 3.20.
Toothed bottom, for electrical connections (ground terminals etc.); Material: spring steel. Teeth: 6.
Technical attributes (suitable screw, washer diameter/ material thickness/ maximum camber): size M 8, 16.2/ 1.4/ 2.0 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | spring steel | |
| Version | contact washer | |
| Height | 1.4 mm | |
| Standard number | DIN 17222 | |
| Thread size | M8 | |
| Outer diameter | 16.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 73182100 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
