002.14.141 | Ettinger

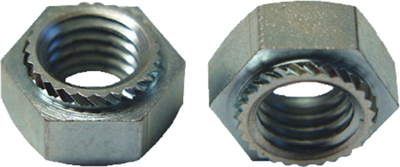

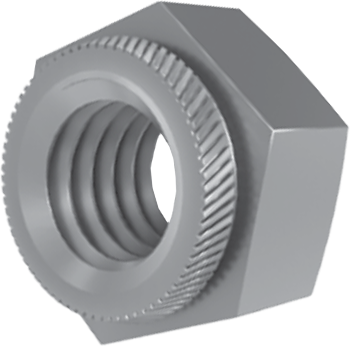

Press-in nut, M4, W 7 mm, H 3.2 mm, outer Ø 5.7 mm, steel, galvanized, 002.14.141
Order No.: 16H586
EAN: 4099889501797
MPN:
002.14.141
2.14.141
Unit Price (€ / pc.)
0.3332 € *
Available: 359 pcs.
Next delivery: 900 pcs. on 2025-11-11
Available in 5 Days: 8,000 pcs. - if ordered today
Total Price:
3.33 € *
Price list
Quantity
Price per unit*
10 pcs.
0.3332 €
100 pcs.
0.2856 €
1000 pcs.
0.2499 €
5000 pcs.
0.2261 €
10000 pcs.
0.1904 €
*incl. VAT plus shipping costs
Subject to prior sale
Set nuts type 2.14.
Carrier thread for sheet metal with a thickness of 1.0 mm. The nut is simply punched or pressed into the hole.

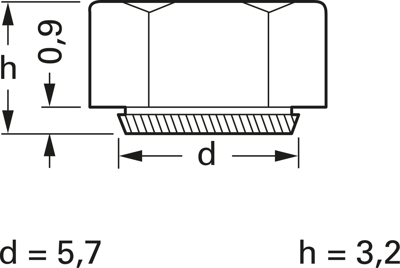

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | blue | |
| Mounting hole size | 5.5 mm | |
| spanner size | 7 mm | |
| Thread size | M4 | |
| Height | 3.2 mm | |
| Outer diameter | 5.7 mm | |
| Material | steel, galvanized | |
| Spindle drive type | external hexagon | |
| Version | set nut | |
| Wall thickness | 1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 73181900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
