002.14.111 | Ettinger

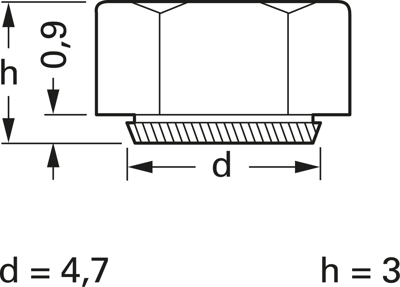

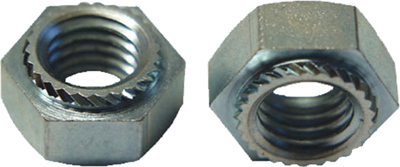

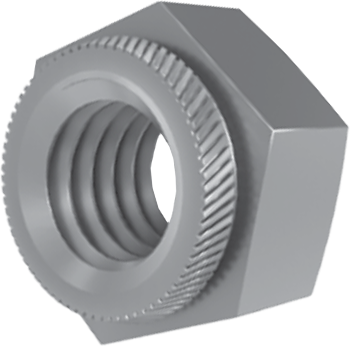

Press-in nut, M2, W 5.5 mm, H 3 mm, outer Ø 4.7 mm, steel, galvanized, 002.14.111
Order No.: 16H580
EAN: 4099889501766
MPN:
002.14.111
2.14.111
Unit Price (€ / pc.)
0.6069 € *
Available: 1,028 pcs.
Available in 5 Days: 2,000 pcs. - if ordered today
Total Price:
6.07 € *
Price list
Quantity
Price per unit*
10 pcs.
0.6069 €
100 pcs.
0.5236 €
1000 pcs.
0.4522 €
5000 pcs.
0.4046 €
10000 pcs.
0.3451 €
*incl. VAT plus shipping costs
Subject to prior sale
Set nuts, type 2.14.
Carrier thread for sheet metal with a thickness of 1.0 mm. The nut is simply punched or pressed into the hole.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 4.7 mm | |
| Version | set nut | |
| spanner size | 5.5 mm | |
| Mounting hole size | 4.5 mm | |
| Thread size | M2 | |
| Height | 3 mm | |
| Wall thickness | 1 mm | |
| Colour | blue | |
| Material | steel, galvanized | |
| Spindle drive type | external hexagon |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 73181900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
