002.14.061 | Ettinger

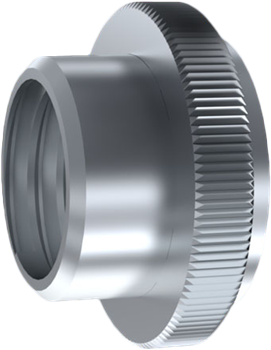

Press-in nut, M6, H 6.3 mm, outer Ø 10.54 mm, steel, galvanized, 002.14.061
Order No.: 17H788
EAN: 4099889504163
MPN:
002.14.061
2.14.061
Unit Price (€ / pc.)
0.8330 € *
Available: 126 pcs.
Available in 5 Days: 2,200 pcs. - if ordered today
Total Price:
0.83 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8330 €
10 pcs.
0.7259 €
100 pcs.
0.6426 €
500 pcs.
0.5593 €
1000 pcs.
0.4760 €
*incl. VAT plus shipping costs
Subject to prior sale

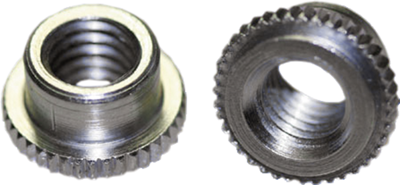

Steel press-in nuts, type 2.14.
Galvanized, for thin steel/light metal sheets. Insertion with two set hammer blows on an anvil tool.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Mounting hole size | 8.71 mm | |
| Colour | blue | |
| Thread size | M6 | |
| Spindle drive type | external hexagon | |
| Outer diameter | 10.54 mm | |
| For wall thickness | 2.44 mm | |
| Height | 6.3 mm | |
| Material | steel, galvanized | |
| Version | press-in nut |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 73181900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
