002.14.031 | Ettinger

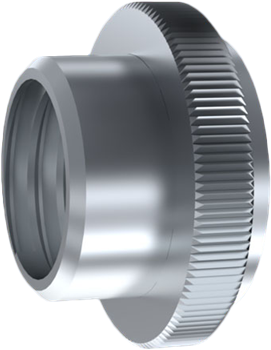

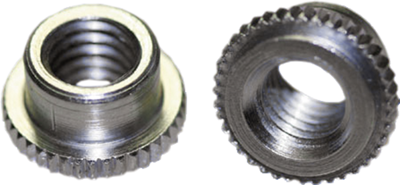

Press-in nut, M3, H 4.6 mm, outer Ø 7.37 mm, steel, galvanized, 002.14.031
Order No.: 17H782
EAN: 4099889504156
MPN:
002.14.031
2.14.031
Unit Price (€ / pc.)
0.4403 € *
Available: 809 pcs.
Available in 5 Days: 11,200 pcs. - if ordered today
Total Price:
0.44 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4403 €
10 pcs.
0.3808 €
100 pcs.
0.3332 €
500 pcs.
0.2927 €
1000 pcs.
0.2487 €
*incl. VAT plus shipping costs
Subject to prior sale
Steel press-in nuts, type 2.14.
Galvanized, for thin steel/light metal sheets. Insertion with two set hammer blows on an anvil tool.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | steel, galvanized | |
| Version | press-in nut | |
| Height | 4.6 mm | |
| For wall thickness | 2 mm | |
| Thread size | M3 | |
| Outer diameter | 7.37 mm | |
| Colour | blue | |
| Spindle drive type | external hexagon | |
| Mounting hole size | 5.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 73181900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
